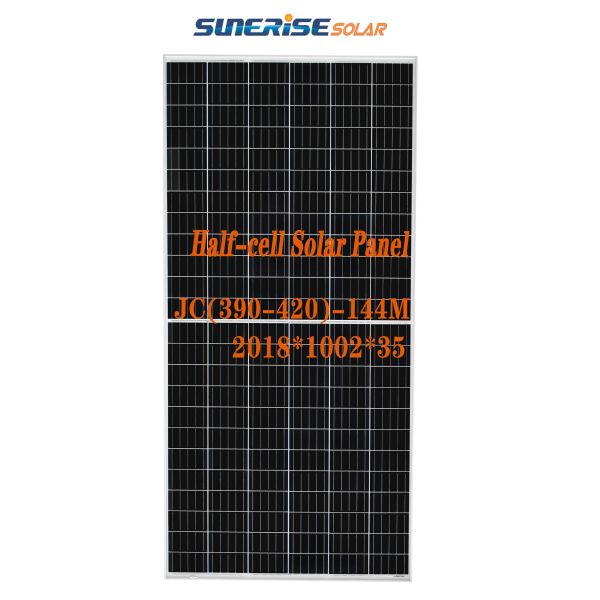

Home Glass Mono 410W 50.4V Half Cut Solar Modules

Half Cell Solar Panel

Home Glass Mono 410W 50.4V Half Cut Solar Modules

Product details:

This item is designed for offering continuous power supply. The solar panel is made of quality materials, due to its high-tech design, with high conversion rate, no matter how the angle of sunlight changes, it can provide stable power output. Proudly made, works with little noise, high efficacy and low malfunction. It's suitable for outdoor activities like camping, fishing, hiking, etc. And it's also suitable for people who work outdoors for long hours. Such a convenient and practical item, just bring it home!

Feature:

1: High transmittance low iron tempered glass with enhanced stiffness and impact resistance.

2: Environmental protection solar energy , bill-free and user-friendly.

3: Up to IEC1500 VDS system voltage,saving on BoS costs.

4: Excellent performance in harsh weather.

5: Adopt high transparent self-cleaning tempered glass to increase the absorption of light, effectively reduce the power loss caused by dust. 6: Suitable for harsh enviroments,such as coasts,deserts and lakes.

7: Waterproof, anti-small hail, efficient and stable, cheap, 25 years life.

Notes for Products :
1. Can't fold.
2 Don't have hard objects scratch the surface!
3. Do not extrude with objects.
4. USB can't enter water.

Maximum Power At STC	410
Open Circuit Voltage	50.4
Short Circuit Current	10.6
Voltage at Maximum Power point	42.3
Current at Maximum Power point	9.69
Power Tolerance	0~+5W
Module Efficiency	20.28
Maximum Power at NOCT	310
Open Circuit Voltage	48.9
Short Circuit Current	8.26
Voltage at Maximum Power point	40
Current at Maximum Power point	7.76
Module application level	ClassA
Values at Standard Test Conditions	Air Mass AM 1.5 , irradiance 1000W/㎡ , Cell Temperature 25℃
NOCT	Irradiance at 800W/㎡ , Ambient Temperature 20℃ , Wind Speed 1m/s

Solar cells

*Anti PID
*High Eficiency PV Cells
*Appearance Consistency
*Color soring ensure consistent appearance on each module

Glass

*Ant-reflectite glass
*Self-cleaning function
*Module efficiency is increased by 2%
*Service life 25 years
*Translucency of normal luminosiy is increased 2%

Frame

*Conventional frame
*Seal-lip design glue injection
*Silver frames
*Serrated-clip design tensile strength
*Boost bearing capability and prolong service life

Junction box

*Heat disspation
*Long service life
*IP68 protection level
*Quality diode ensures module running safety
*Conventional standalone edition and engineering custom edition

FAQ:
Dear friends,
Thanks for shopping from us.
We will deliver the goods within five to eight working days after you pay, and then inform you to track the delivery order number.The package will arrive in your country in 35 days.If you don't receive the goods within 80 days, we will give you a full refund or resend the goods.If you have any questions, please contact us before you raise a dispute.We will try our best to solve your problems and provide you with the best after-sales service.Your satisfaction and feedback are very important to us.
I hope you enjoy your shopping in our shop.
